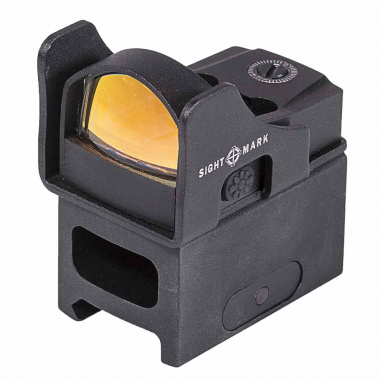

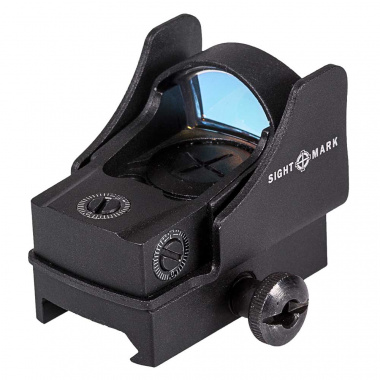

Sightmark Mini Shot Pro Spec w/Riser Mount - Red Dot
Description

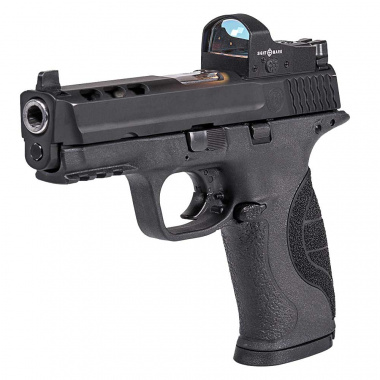

The Mini Shot Pro Spec Reflex Sight is an improved version of the most compact, lightweight sight in the Sightmark® reflex sight line. Designed for shotguns, rifles, and pistols, the Mini Shot Pro Spec™ with red reticle is equipped with an advanced optical system with dual-pane glass, a scratch-resistant lens, and a battery life up to 10,000 hours. The device also includes windage and elevation click adjustments to dial in quickly and an external battery compartment to maintain zero when replacing batteries. Small but powerful, the Mini Shot Pro Spec™ maintains peripheral vision and depth perception for quick target acquisition. The device also features a side-mounted, digital on/off switch for easy activation. Protected by a protective hood, the unit comes standard with a removable low-profile weaver mount and lower 1/3 co-witness riser mount. Additional pistol mounts are sold separately.

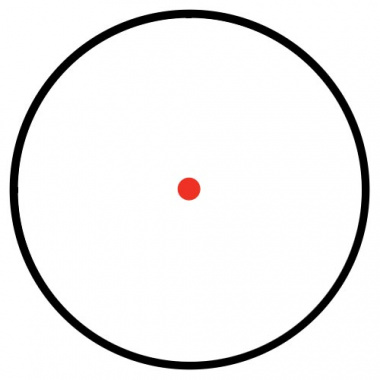

Reticle, Type | 5 moa dot |
Reticle, Color | red |
Reticle, Illuminated | yes |
Reticle Brightness Setting | 1-5 and off |
Finish/Color | matte black |
Magnification | 1 x |
Diameter, Objective Lens | 23x16 mm |
Eye Relief | unlimited mm |
Field of View | 15.7 m @100m |
Field of View | 51.5 ft @100yd |
Parallax Setting | 10yds to infinity yds |
MOA Adjustment | 1 1 click = MOA |
Windage Range of Adjustment | 150 MOA |
Elevation Range of Adjustment | 205 MOA |
Maximum Recoil | 1,000 G's |
Battery Type | CR1632 |
Battery Life | 20-10,000 hours |
Battery Voltage, V | 3 V |
Sunshade | No |
Nitrogen Purged | No |
Shockproof | Yes |
Fog Proof | No |
Focal Plane | NA |
Waterproof Rating | IPX4 - weatherproof |
Body Material | aluminum |
Lens Coating | AR Red |
Mount Type | weaver/picatinny |
Operating Temperature | 0 to 120 / -17 to 49 °F/°C |
Length | 1.9 / 48.6 in / mm, w/ protective shield |
Width | 1.4 / 34.8 in / mm, w/ protective shield |
Height | 1.6 / 40 in / mm, w/ protective shield |
Height | 2.2 / 56.9 in / mm, w/ protective shield and riser mount |
Weight | 3.3 w/ protective shield, and low profile mount |
Weight | 4 w/ protective shield and riser mount |
